Premium Vinyl Pavilion - Traditional Roof

1,500.00 LBS
Calculated at Checkout

Product Description

How measured and quoted: Your roof span will be 8 1/4" larger than your size. For example, if you order a 12x14 size, the roof span measures 12'-8 1/4" x 14'-8 1/4". The post centers for a 12x14 measure 11' x 13'.

Number of posts: Roof spans of up to 18'-8" can span two posts. Longer than that and you need a third post somewhere along the middle, unless you upgrade to thicker timbers or engineered beams.

Base package includes:

  • Features Wolf Trim™ brand (compare to Azek™) high density cellular PVC trimboard (smooth, matte white, 5/8" thick)
  • Wolf Trim wraps pressure treated pine beams/headers, corner braces, post crowns, and post base moldings
  • All wood is pressure treated Southern Yellow Pine #1 Grade, clear (i.e. no knots)
  • 6" x 6" pressure treated posts covered by solid vinyl sleeves 3/16" thick (one solid piece)
  • 4" x 8" pressure treated beams covered by 5/8" x 8" Wolf Trim™ white high density PVC trimboard
  • Top corner post moldings covered by 5/8" x 8" Wolf Trim™ white high density PVC trimboard
  • Wolf Trim™ white cellular high density PVC decorative post base moldings
  • 1" x 6" pressure treated tongue and groove roof decking
  • 6/12 roof pitch (other pitches available)
  • 30 year architectural shingles (choice of nine colors below)
  • Shop drawings for you to review and approve prior to fabrication
  • An assembly manual featuring pictures and easy to follow instructions
  • 10 year warranty
  • *A shipping charge of 5-8% applies to kits shipping to AZ, CA, ID, MT, NV, OR, UT, WA*

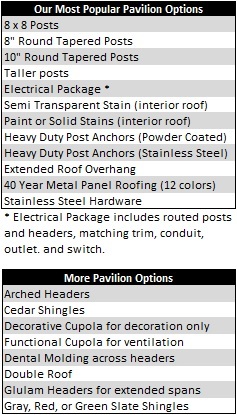

Options: Call us for pricing not shown in the drop down menus above.



30 Year Architectural Shingle Color Options
